How to Convert Queries into Decision-Ready Dashboard Widgets?

How to Convert Queries into Decision-Ready Dashboard Widgets?

Queries define what matters.

Widgets define how it is understood.

Once governance-ready queries are created, the next step is converting them into visual widgets that leadership can interpret immediately.

The objective is not to create more charts.
The objective is to create clear, decision-ready views.



Step-by-Step Guide

Step 1: Create a Widget from an Existing Query

Every widget must start with a structured query.

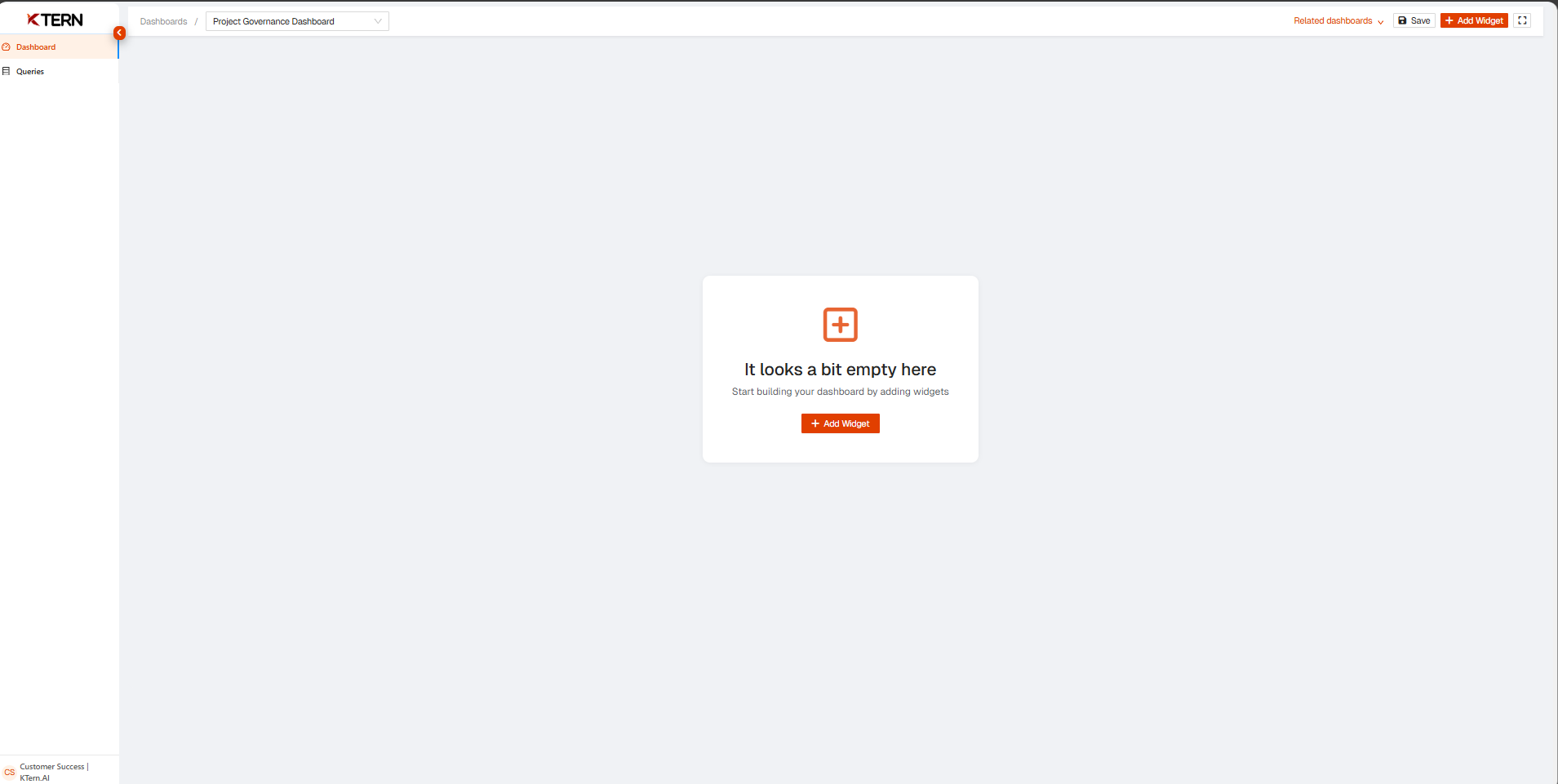

To Create a Widget:

  1. Navigate to Dashboards
  2. Open the desired dashboard
  3. Click Add Widget
  4. Select the relevant Query

Always select a pre-defined, governed query.

This ensures:

  • The widget reflects approved governance logic
  • The same query can be reused across multiple dashboards
  • Data consistency is maintained across weekly reviews

Widgets do not redefine logic.
They visualize it.

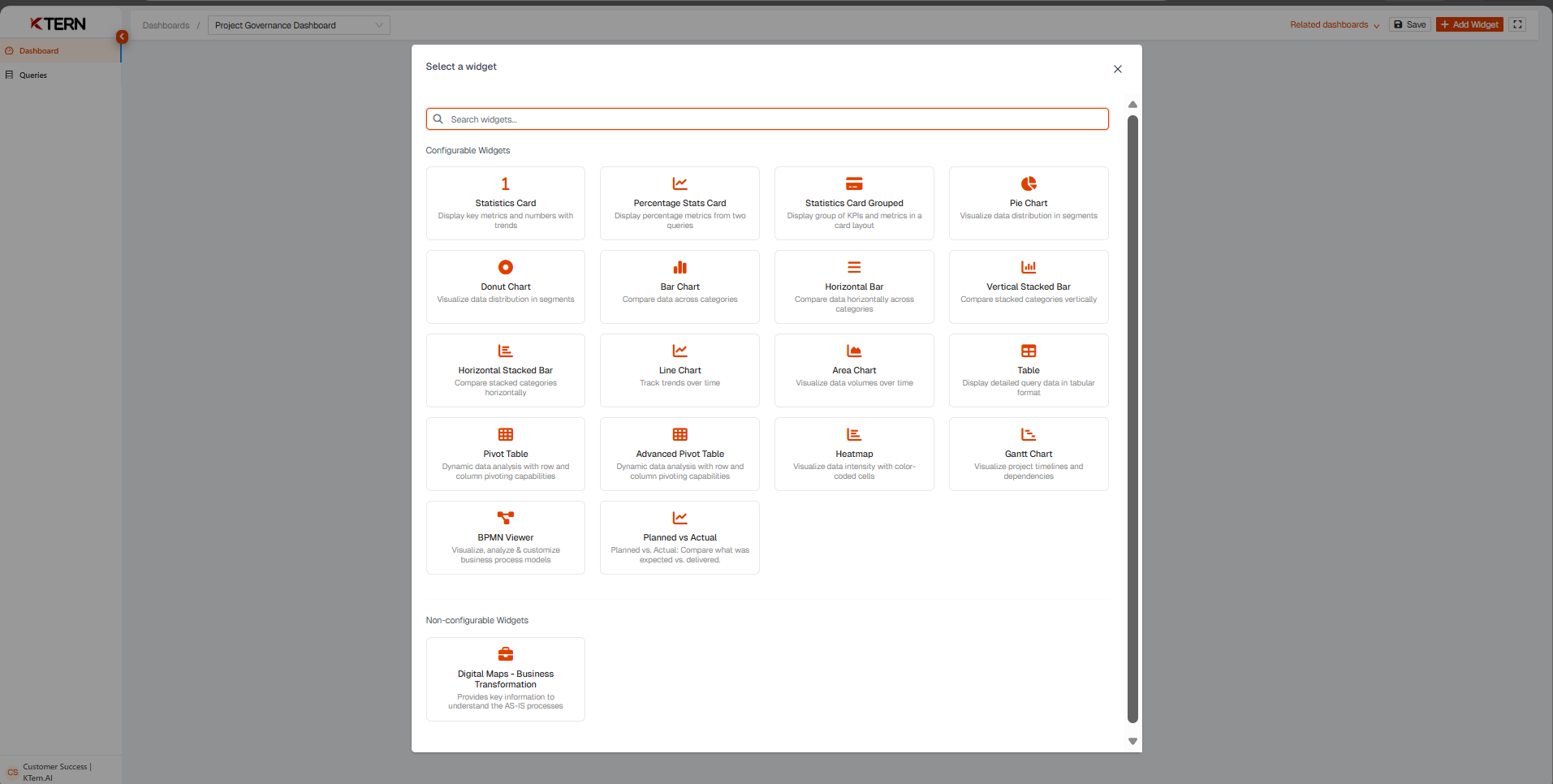

Step 2: Choose the Appropriate Widget Type

Selecting the correct widget type is critical.
The format you choose directly affects how leadership interprets the data.

Different governance questions require different visual formats.

Use a KPI or Statistic Widget when:

  • You need to show overall status
  • You want to highlight a single critical number
  • Leadership needs a quick health indicator

Example: Total overdue items or overall completion percentage.



Use a Trend or Line Chart when:

  • You need to show movement over time
  • You want to highlight improvement or slippage
  • Leadership needs to see direction, not just a snapshot

Example: Week-over-week change in delayed activities.



Use a Distribution Chart (Bar or Pie) when:

  • You need to show concentration
  • You want to compare categories
  • Leadership needs to understand where impact is accumulating

Example: Risks grouped by impact level or workstream.



Use a Table when:

  • Detailed validation is required
  • The PMO needs to drill deeper
  • Specific items must be reviewed

Tables should support discussions, not dominate executive dashboards.



Guiding Principle

Choose the widget type based on the question being answered.

If leadership needs a quick decision view, use summary visuals.
If validation is required, use structured detail.

Using the wrong widget creates confusion and slows down discussions.

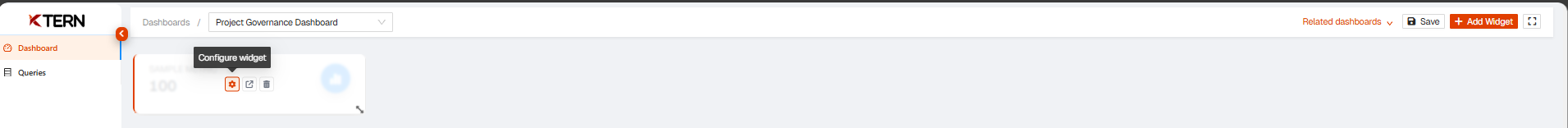

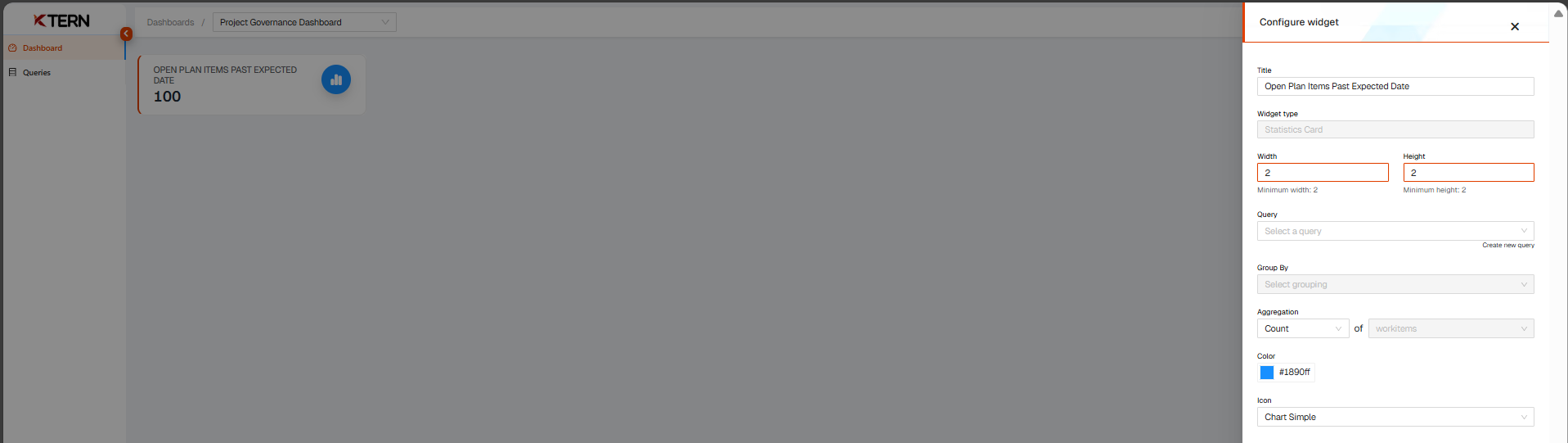

Step 3: Configure the Widget for Clarity

Once the widget type is selected, configure it for immediate clarity.

Best Configuration Practices

  • Use a clear, question-driven title
    Example: “Open Plan Items Past Expected Date”
  • Select meaningful grouping or aggregation
    Example: Group by Workstream, Owner, or Priority
  • Control what data is visible by default
    Avoid overwhelming leadership with excessive detail

A well-configured widget should be understandable within seconds.

If a widget requires explanation during the meeting, it needs redesign.



Step 4: Align Widgets to Steering Committee Needs

Steering dashboards are not operational dashboards.

They are decision dashboards.

Steering Committee Focus Areas

  • What is on track
  • What is at risk
  • What requires a decision

Steering Dashboard Principles

  • Highlight exceptions, not everything
  • Surface trends, not raw lists
  • Emphasize impact, not activity

Widgets should drive structured discussion, not data validation.



Practical Example: Weekly Health Review Dashboard

A structured weekly dashboard may include:

1. Summary Widget

Displays overall delivery health or progress percentage.

2. Trend Widget

Shows slippage or improvement over time.

3. Distribution Widget

Highlights concentration of risks or overdue items.

4. Drill-Down Table

Supports quick validation if deeper insight is required.

Each widget must answer one governance question.

If a widget does not answer a question, it should not exist.



Important Practice: Maintain Execution Data

Dashboards reflect live project data.

If:

  • Status updates are delayed
  • Dates are not revised
  • Risk ratings are outdated

The widgets will misrepresent reality.

Real-time dashboards require real-time execution discipline.

Data hygiene is a shared responsibility.

Key Takeaway

Queries define what matters.
Widgets define how it is understood.

When structured correctly:

  • Dashboards support decisions
  • Reviews become focused
  • Leadership conversations become time-efficient

A well-designed dashboard reduces reporting noise and increases governance clarity.
